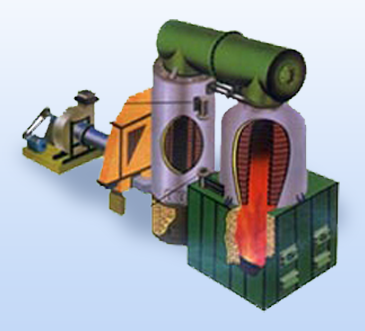

The new vertical four pass thermic fluid heater is suitable for Process industries in rapidly changing and undependable energy situations. It gives you an assurance for rated output on any solid fuel like coal, Lignite, wood, husk, bagasse etc.
| Parameter | Unit | Model | |||||
|---|---|---|---|---|---|---|---|
| ABTV-400 | ABTV-600 | ABTV-1000 | ABTV-1500 | ABTV-2000 | |||
| Heat Output | Kcal/Hr | 4,00,000 | 6,00,000 | 10,00,000 | 15,00,000 | 20,00,000 | |
| Max.Fluid Outlet Temperature | oC | 300 | |||||
| Max. Head at heater Outlet | M/c | 27 | |||||
| Efficiency on GCV | Steam Coal | % | 76 | ||||
| Agro-waste | % | 70 | |||||
| Rated fuel consumption | Steam Coal | Kg/hr | 116 | 175 | 290 | 435 | 580 |
| Lignite | Kg/hr | 150 | 226 | 376 | 564 | 752 | |
| Agro-waste | Kg/hr | 174 | 260 | 433 | 650 | 886 | |
| Thermic Fluid Pump Motor | Kw | 7.5 | 9.3 | 11.0 | 18.5 | 30 | |
| I.D.Fan Motor | Kw | 3.7 | 5.5 | 9.3 | 11.0 | 15.0 | |
| F.D.Fan Motor | Steam Coal | kw | - | 1.5 | 2.2 | 3.7 | 5.5 |
| Agro-waste | kw | - | 2.2 | 3.7 | 5.5 | 7.5 | |
| Total Load | Steam Coal | kw | 11.2 | 16.3 | 22.5 | 32.3 | 50.0 |
| Agro-waste | kw | - | 17.0 | 24.0 | 35.0 | 52.5 | |
| Expansion Tank Capacity | Liters | 800 | 800 | 1000 | 1000 | 1250 | |
